How to Board a Loft Without Raising the Joists: EvoBoard vs Loft Legs

Creating useful storage space in a loft can be awkward when you also need to protect the insulation and preserve as much headroom as possible. The traditional answer is often to raise a timber deck above the insulation using loft legs or another support system. EvoBoard offers a different approach: interlocking insulated panels that form a storage surface without a separate raised timber deck in suitable lofts.

This guide explains the main options, where EvoBoard may make sense, and the checks to complete before ordering.

Why boarding directly over loft insulation can cause problems

Standard loft boards should not simply be laid on top of soft insulation. Compressing insulation can reduce its effectiveness, while covering the loft without considering ventilation, cables, pipework, recessed lighting and heat sources can create further problems.

The loft structure must also be suitable for the additional weight of the system, the person installing it and anything stored afterwards. A boarded storage area does not turn a loft into a habitable room, and any uncertainty about the structure should be referred to a suitably competent professional.

Option 1: Loft legs with timber boards

A conventional raised-deck system uses supports fixed to the ceiling joists, with chipboard or another suitable deck fitted above them. The raised platform helps maintain space for insulation beneath the boards.

Potential advantages

• A familiar system with widely available components.
• The deck can be planned around the required insulation depth.
• Individual boards can be replaced if damaged.

Points to consider

• The legs and boards create a multi-part installation.
• Raising the finished deck reduces usable headroom.
• More cutting and fixing may be required.
• The suitability of the joists and the proposed storage load still needs to be checked.

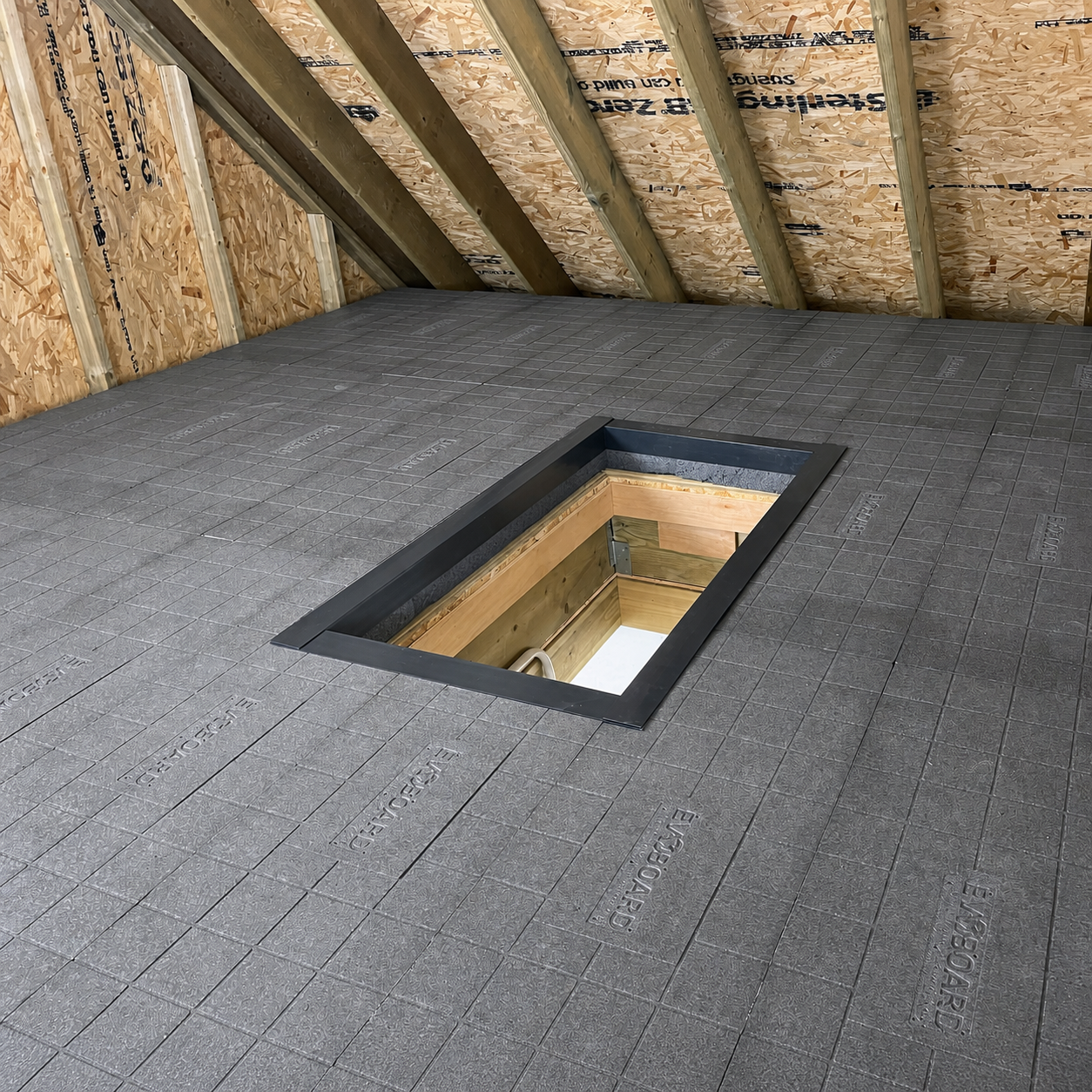

Option 2: EvoBoard insulated loft storage panels

EvoBoard combines high-density EPS insulation with an interlocking storage surface. Each panel measures 1200mm × 400mm × 125mm and covers 0.48m². The dovetail-style edges join together to form a continuous platform, removing the need for separate loft legs and timber boards in suitable installations.

This makes EvoBoard particularly interesting where retaining headroom, reducing the number of installation components and adding insulation above the joists are priorities.

Potential advantages

• Insulation and a storage platform are combined in one panel.
• No separate loft legs or timber deck are required in suitable installations.
• Lightweight panels are easier to handle than many traditional boards.
• Panels can be cut with ordinary hand tools.
• The system can be fitted parallel or perpendicular to compatible timber joists, subject to the current installation guidance.
• EvoBoard has a declared thermal conductivity of 0.030 W/mK and is covered by a Kiwa BDA Agrément.

Points to consider

• The system is intended for loft storage and access, not the creation of a habitable room.
• The loft structure, joist condition and spacing must be suitable.
• Ventilation routes and safe clearances around lights, flues, chimneys and other heat sources must be maintained.
• Existing insulation should be checked before installation.
• The current EvoBoard design guide and installation instructions must be followed.

EvoBoard vs loft legs: a practical comparison

Neither option is automatically right for every property. The best choice depends on the loft structure, insulation already present, required storage area, access, ventilation and available headroom.

How much EvoBoard do you need?

Each pack contains 18 panels and covers 8.64m²:

• 1 pack: 18 panels covering 8.64m²
• 2 packs: 36 panels covering 17.28m²
• 3 packs: 54 panels covering 25.92m²
• 4 packs: 72 panels covering 34.56m²

Measure the intended platform rather than the entire loft unless you genuinely need to board the full area. Allow for the layout and any obstacles, but do not cover required ventilation routes or create unsafe access around services and heat sources.

Checks to make before ordering

1. Inspect the structure: confirm the joists and roof structure are suitable for the proposed system and storage use.
2. Measure the joist spacing: check it against the current EvoBoard installation requirements.
3. Assess existing insulation: make sure it is suitable, correctly installed and in good condition.
4. Identify hazards: locate cables, pipework, recessed lighting, flues, chimneys and other heat-producing equipment.
5. Protect ventilation: maintain the required airflow, including a 75mm ventilation gap at the eaves where specified by the manufacturer.
6. Plan delivery access: EvoBoard is a bulky delivery-only product, so suitable access is required.

Is EvoBoard worth considering?

For a suitable loft, EvoBoard offers a commercially attractive alternative to building a separate raised timber platform. Its strongest benefit is simplicity: the same panel provides additional insulation and a usable storage surface while limiting the loss of headroom.

However, the buying decision should be based on suitability rather than convenience alone. Check the loft carefully and follow the current manufacturer guidance. If you are unsure about the structure or installation conditions, obtain advice before ordering.
