EvoBoard Insulated Loft Storage Panels

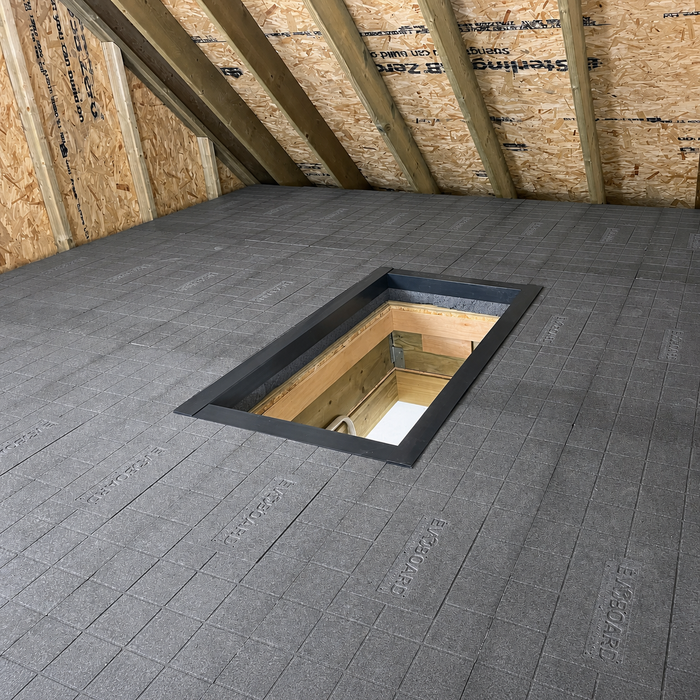

EvoBoard Insulated Loft Storage Panels provide a quick and practical way to create usable storage space or an access walkway in your loft while adding an additional layer of insulation above the existing ceiling joists.

Unlike traditional loft boarding systems, EvoBoard does not require separate loft legs and timber boards in suitable installations. The lightweight panels interlock to create a continuous insulated surface suitable for loft storage and access.

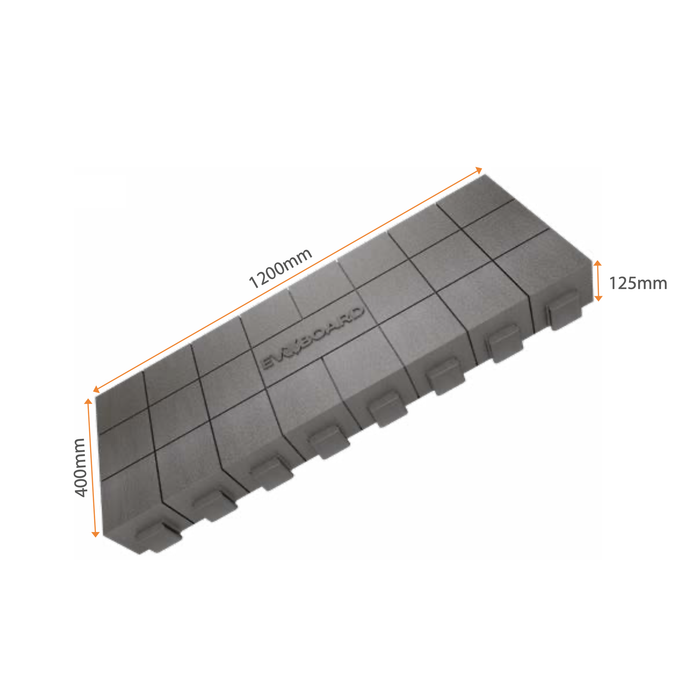

Each EvoBoard panel measures 1200mm × 400mm × 125mm and covers 0.48m². The panels are supplied in wrapped packs of 18, with each pack covering 8.64m².

Why Choose EvoBoard Insulated Loft Storage Panels?

• Creates practical loft storage or access space

• Combines insulation and a storage platform in one system

• No separate loft legs or timber boarding required in suitable installations

• Lightweight panels that can be cut using ordinary hand tools

• Interlocking edges help create a continuous surface

• Suitable for installation over compatible timber ceiling joists

• Can be installed parallel or perpendicular to the joists

• Suitable for new and existing loft spaces, subject to inspection

Pack Sizes and Coverage

• 1 pack: 18 panels covering 8.64m²

• 2 packs: 36 panels covering 17.28m²

• 3 packs: 54 panels covering 25.92m²

• 4 packs: 72 panels covering 34.56m²

If you require more than four packs, please contact UK Building Supplies for a tailored quotation and delivery price.

Technical Specifications

• Product: EvoBoard Insulated Loft Storage Panels

• Material: Moulded EPS insulation

• Panel size: 1200mm × 400mm × 125mm

• Coverage per panel: 0.48m²

• Panels per pack: 18

• Coverage per pack: 8.64m²

• Thermal conductivity: 0.030 W/mK

• Compressive-strength classification: EPS120

• Certification: Kiwa BDA Agrément BAR-23-300-P-A-UK

Insulation Requirements

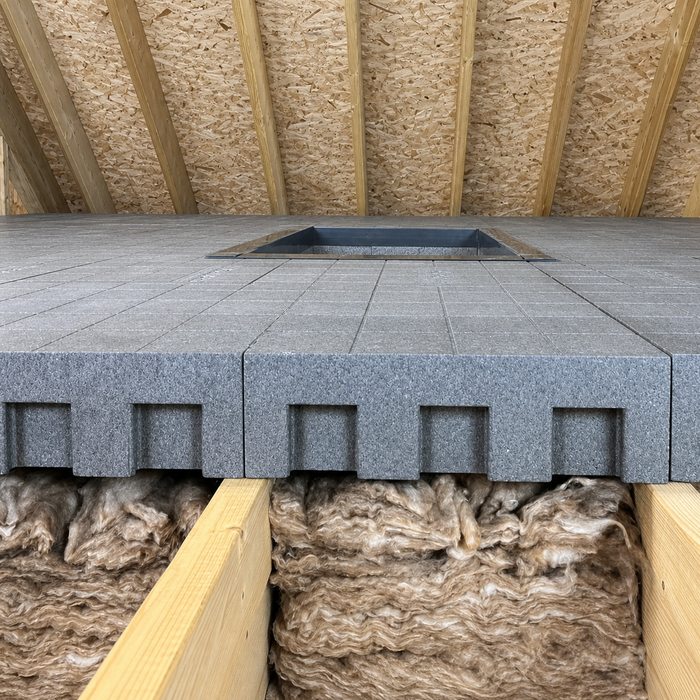

EvoBoard is normally installed over suitable loft insulation positioned between the ceiling joists. Existing insulation may be retained where it is correctly installed, suitable for the application and in good condition.

Where the spaces between the joists are empty or the existing insulation needs replacing, suitable loft insulation should be installed before fitting EvoBoard and can be purchased here

Important Installation Information

Before installation, the loft structure, joist condition and spacing, ventilation, electrical cables, pipework, recessed lighting, flues and other heat-producing appliances must be checked.

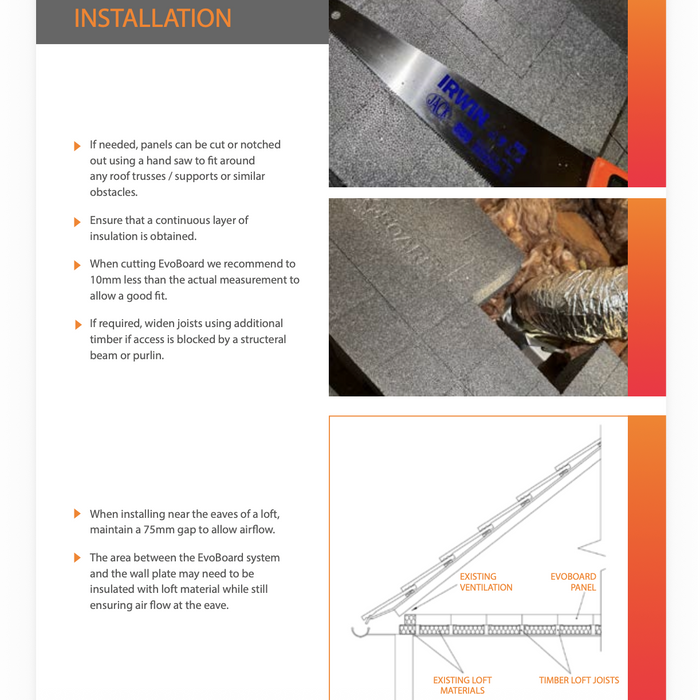

A 75mm ventilation gap should be maintained at the eaves. EvoBoard must be kept away from flames, recessed lights, flues, chimneys and other potential ignition or heat sources.

Always follow the current EvoBoard Design Guide and installation instructions. If you are unsure whether EvoBoard is suitable for your loft, obtain advice from EvoBoard or a suitably competent installer before ordering or installation.

Delivery and Ordering

Delivery is included in the displayed price to most UK mainland addresses. Some remote locations may require an additional charge. If this applies, we will contact you and confirm the cost before processing your order.

At UK Building Supplies, we supply EvoBoard directly to customers across the UK. This is a delivery-only product, with delivery normally expected within 3–5 working days depending on the quantity ordered, delivery location and current availability.

Please ensure suitable access is available for the delivery vehicle. Larger quantities may arrive on more than one pallet.

Watch the EvoBoard installation video:

https://www.youtube.com/watch?v=x2z2kHOw4G4

Buy with confidence—all EvoBoard panels are supplied brand new and sourced directly from the supplier. Availability and delivery times may vary depending on order quantity and location.
